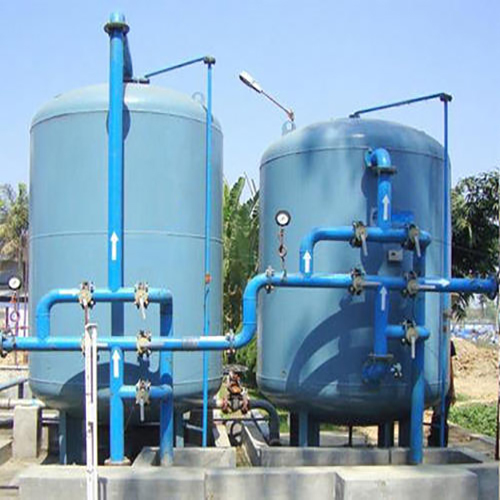

Water Sand Carbon Filter

Name: Water Sand Carbon Filter
Brand: UNIVERSAL WATER CHEMICALS (P) LTD.
Price: 40000 INR
Availability: InStock

Price 40000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Water Sand Carbon Filter Specification

Usage & Applications
Water Filtration, Industrial/Commercial/Residential Use

Feature
Robust Construction, Corrosion Resistant

Flow Rate
500-15000 LPH

Recycle Rate
Up to 95%

Pump Type
Centrifugal, Submersible

Power Consumption
1.5-3 kW (depends on size) Watt (W)

Water Out Conductivity
< 20 S/cm

Efficiency (%)
95-99%

Water in conductivity
Varies (typically 200-500 S/cm)

Noise Level
<70 dB db

Ph Level
6.5-8.5

Technology
Sand & Activated Carbon Filtration

Frequency
50/60 Hz Hertz (HZ)

Voltage
220-240V AC, 50/60Hz Volt (v)

Drive Type
Electric Motor

Material
FRP/SS304

Power Source
Electric

Volume
Varies by model (typically 250-2000 L) Liter (L)

Automatic Grade
Semi-Automatic, Automatic

Product Type
Carbon Sand Filter

Water Source
Borewell, River, Municipal Supply

Purity Level
Up to 99%

Filter Type
Multimedia (Sand & Carbon)

Capacity
500-10000 LPH Ltr/hr

Installation Type
Floor Standing

Inlet/Outlet Connection
1 inch to 4 inch (customizable)

Service Life
2-3 years (media dependent)

Temperature Range
5C to 55C

Filtration Accuracy
10-20 Microns

Media Type
Quartz Sand, Activated Carbon Granules

Packaging Type
Standard Export Packaging

Control Valve
Manual/Automatic

Compliance
IS/ISO Standards

Operating Pressure
2-5 kg/cm

Surface Finish
Epoxy Coated

Water Sand Carbon Filter Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
10 Days

About Water Sand Carbon Filter

Being one of the leading manufacturers and supplier of Sand and Carbon filters,we engaged in using of modern technologies. Our sand filters help to remove suspended and visible impurities, which reduces TDS and turbidity of input water.Our carbon filters remove odour,color and organic matter.We provide you best range of sand and carbon filters with timely delivery.

Frequently Asked Questions:

1) What is sand filter and carbon filter?

Sand filter and Carbon filter are commonly utilized for accomplishing supplemental evacuations of suspended solids and microbes not obliterated by the clarifocculation interaction.Sand and carbon filtration are outfitted with computerized discharge framework to keep an elevated degree of efficienza.

2) Can sand filter reduce TDS?

High-rate sand filters normally lessen TDS by consistently unloading extensive measures of water down the channel during discharge cycles.

3) What are the advantages of a sand filter?

A portion of the advantages of involving sand filtration for your pool channel are:
Utilizing system is a simple.
Requires low support that doesn't need a help call.
Eliminates little and enormous soil and trash from the pool.
Is somewhat economical to introduce and refresh.

4) What do sand filters remove from water?

A sand filter can only remove strong particles from the water,similar to green growth and natural material.Salts that do not break down in water,similar to salts that show up in manures, can be separated from the water by a sand channel, given that the particles are sufficiently huge.

Advanced Filtration for Superior Water Quality

Utilizing a multimedia approach with quartz sand and activated carbon, the Sand Carbon Filter excels at removing suspended particles, organic matter, chlorine, and odors. This ensures purified water with low conductivity (<20 S/cm), making it suitable for diverse applications ranging from drinking water to industrial processes.

Durable Construction & Customizable Design

Each unit is built with epoxy-coated FRP or SS304 materials, guaranteeing corrosion resistance and mechanical robustness. The model can be tailored for different flow rates (500-15,000 LPH) and connection sizes, and offers flexibility in operation-manual or automatic control.

Efficient Operation & Reliable Performance

Designed for efficiency (95-99%) and low noise (<70 dB), the system supports extended service life (2-3 years, media dependent) and high recycle rates. The backwash facility ensures easy maintenance while minimizing downtime. Energy consumption ranges from 1.5-3 kW, suitable for most installation environments.

FAQ's of Sand Carbon Filter:

Q: How does the Sand Carbon Filter remove impurities from water?

A: The filter employs a multimedia combination of quartz sand and activated carbon granules. Sand traps suspended solids and particulate matter, while activated carbon adsorbs organic compounds, chlorine, and odors, resulting in highly purified water with up to 99% purity.

Q: What is the recommended process for backwashing the filter?

A: The Sand Carbon Filter features an integrated backwash facility. Regular backwashing is recommended-typically once every week or as indicated by pressure drop-to wash out accumulated contaminants and rejuvenate filter media, ensuring optimal filtration performance.

Q: When should I replace the filtration media in the unit?

A: Media replacement depends on operational conditions and feed water quality but is generally advised every 2-3 years. Timely media replacement maintains high filtration accuracy (10-20 microns) and ensures the system continues to deliver efficient, consistent water purification.

Q: Where can the Sand Carbon Filter be installed and used?

A: This filtration system is versatile and floor-standing, suitable for installation in industrial plants, commercial facilities, and residential buildings. Compatible water sources include borewells, rivers, and municipal supplies, catering to a variety of filtration needs.

Q: What are the main benefits of using the Sand Carbon Filter?

A: Key benefits include robust construction for long-term durability, high filtration efficiency (95-99%), customizable specifications, compliance with IS/ISO standards, and user-friendly maintenance. It delivers safe, clean water for numerous applications while supporting high recycle rates and energy-efficient operation.

Q: How should the filter be operated-manually or automatically?

A: The system accommodates both manual and automatic operation, depending on the installed control valve. Manual settings offer straightforward operation, while automation enables hands-free management, convenient for high-demand or remote applications.
